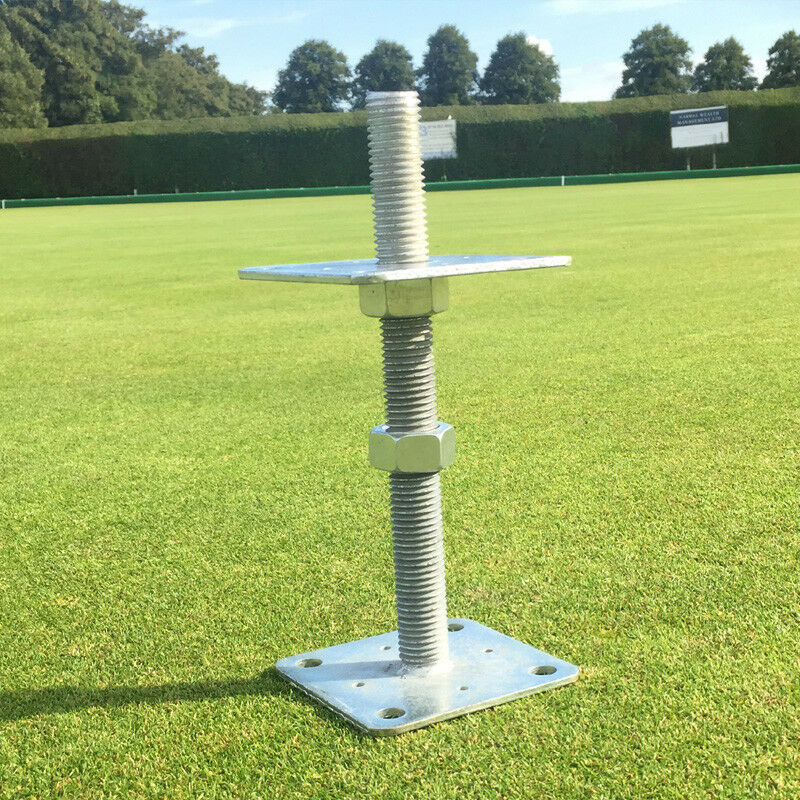

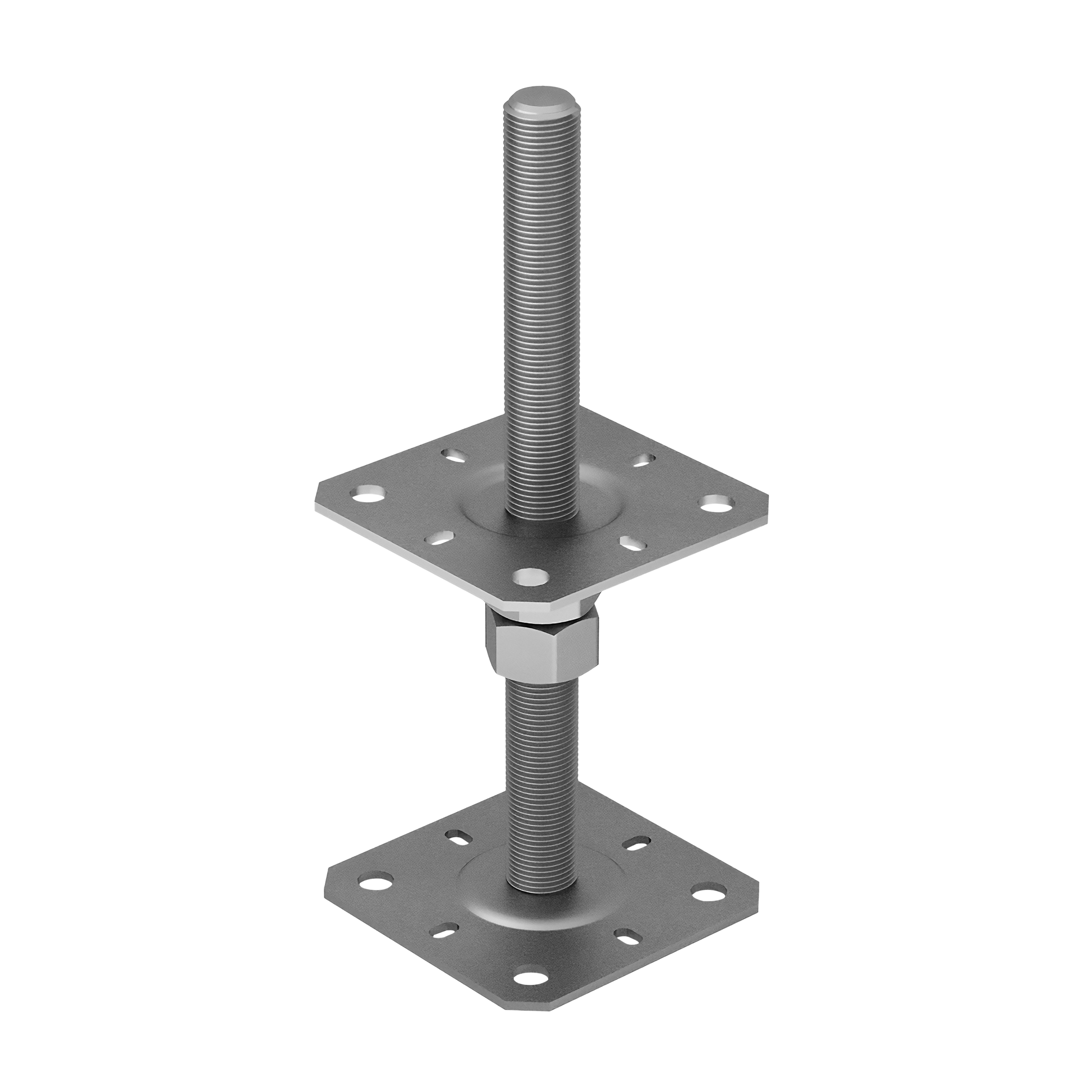

Heavy Duty Galvanised Adjustable Bolt Down Post Support Height 25cm Bar M20mm

£4.89£9.39 inc VAT

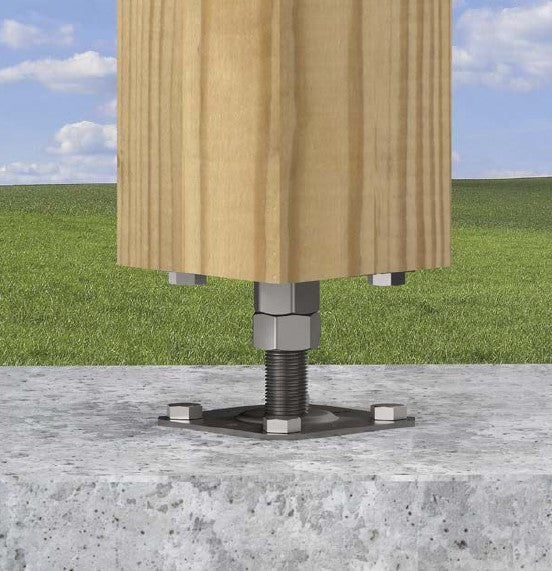

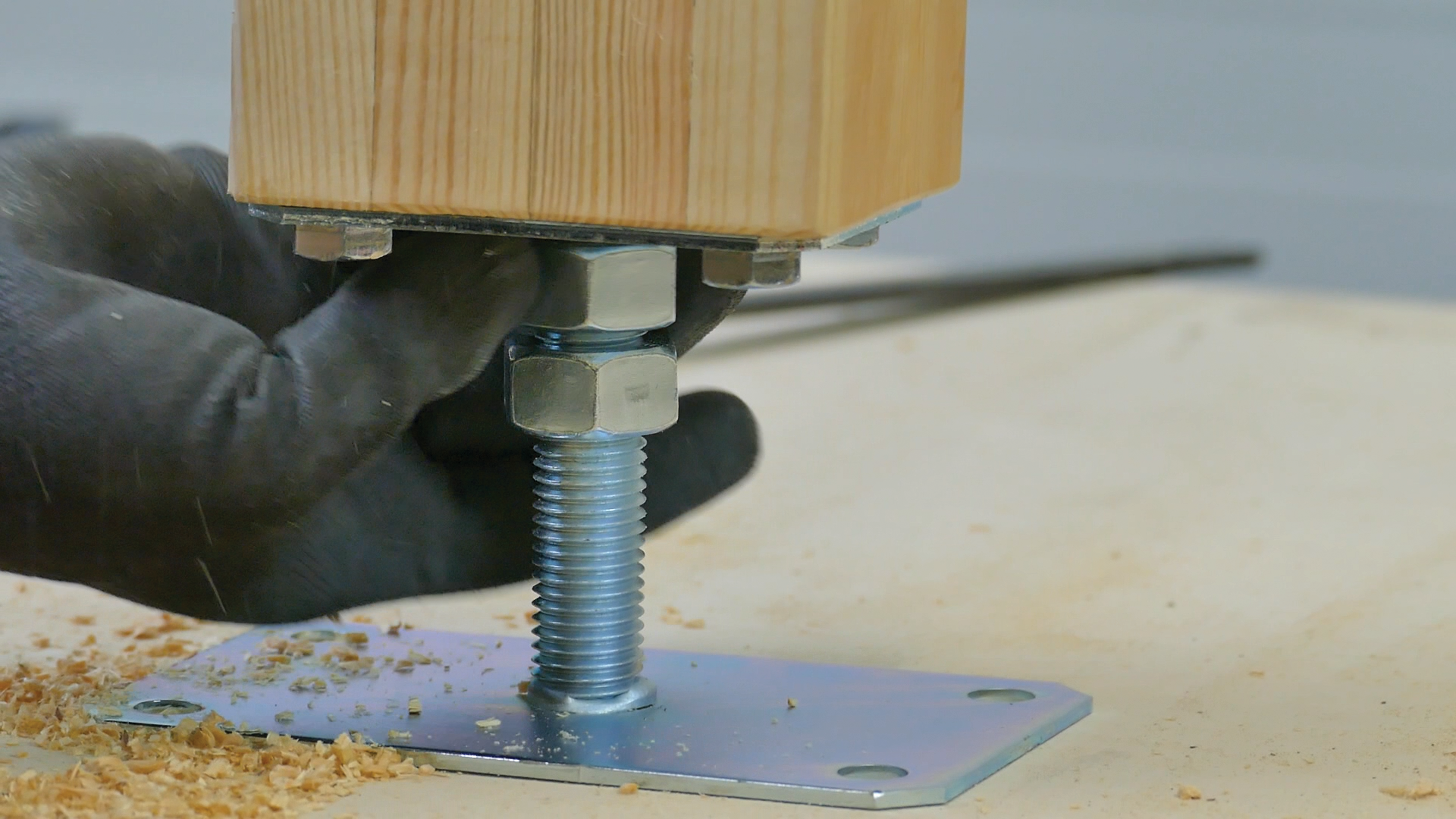

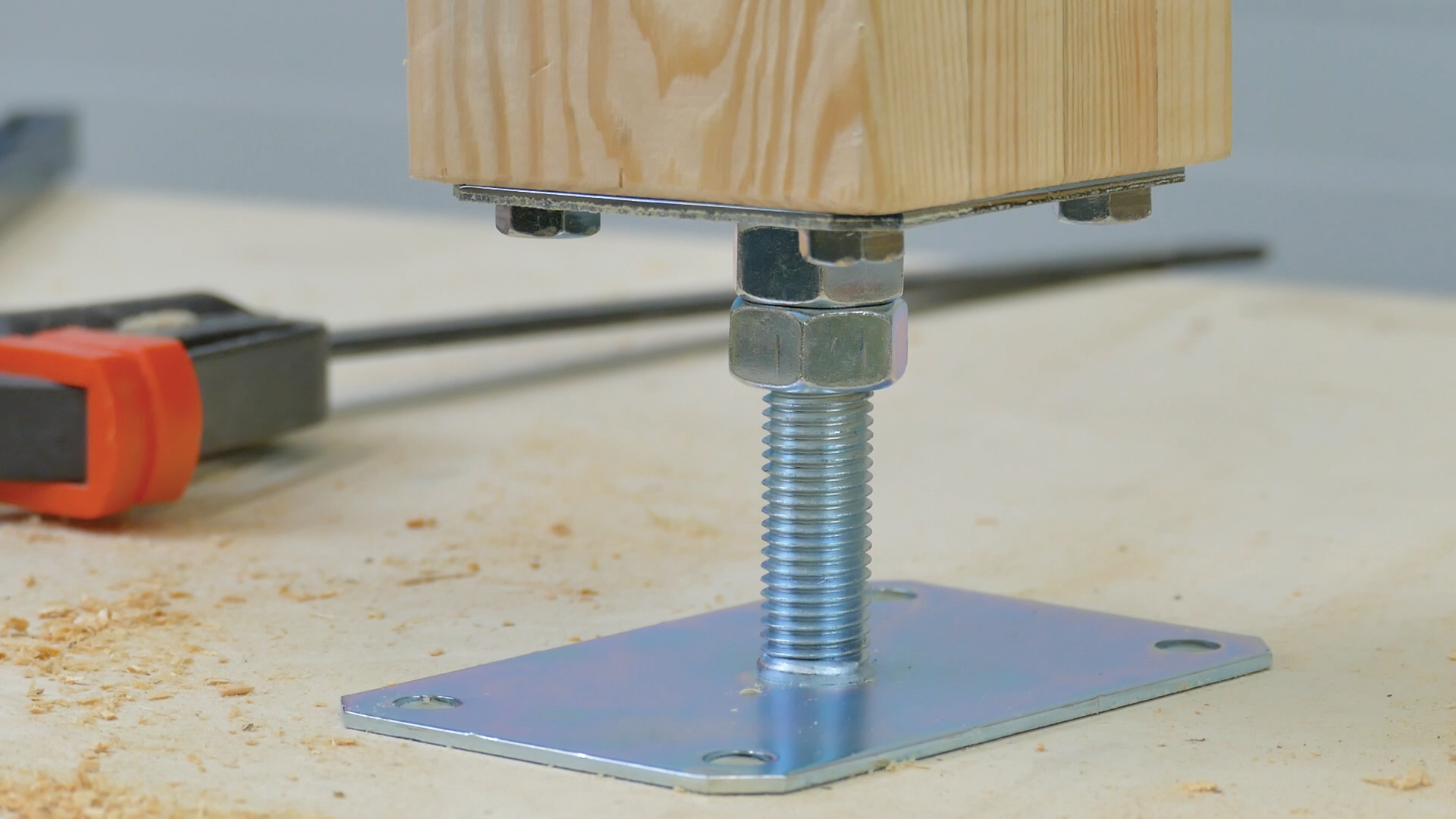

Adjustable Elevated Post Support  facilitates mounting of wooden elements with concrete. The adjustment allows to determine the height of the element to be mounted

  • Adjustable elevated Post Support
  • Height: 250mm mm ( 10″)
  • 80 mm – 3-3/16″
  • 100 mm – 4″
  • Holes size 10mm
  • Thickness: 3 mm
  • Bearing: 57.30kn
  • thread size : 20mm

SKU: PSR Category:

Description

Material: S235 hot dip silver galvanized zinc applied by immersing the object in melted zinc heated up to the temperature of about 450 C. Obtained thickness of coating amounts to 80-90 um, no less than 60 um. Such a thick layer protection is recommended for products exposed to long-lasting influence of moisture, particularly for products to be used in a garden. Such coating may be covered with decorative paints suitable for galvanized (zinc-coated) surfaces.

PSR

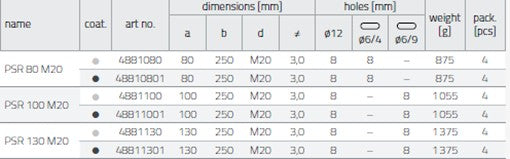

Model Width Depth Height Thickness Load Capacity
PSR80 80mm (3.2″) 80mm 250mm ( 10″) 3mm 57.30kn
PSR100 100mm (4″) 100mm 250mm (10″) 3mm 57.30kn

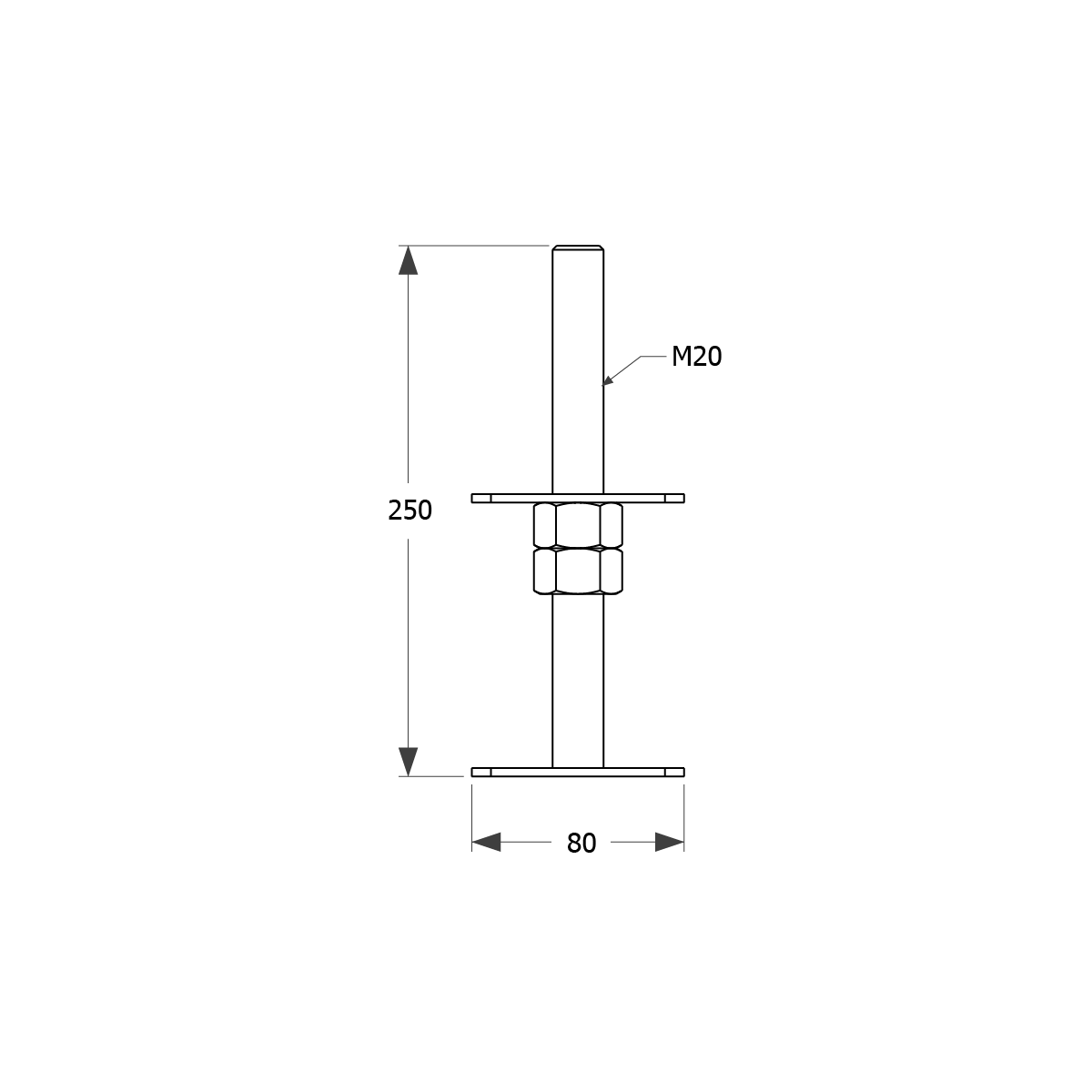

PSR80 Technical Drawing

PSR100 Technical Drawing

Additional information

Weight 0.9 kg
