Bolt down square post pergola support brackets 90 -200 mm

£9.49£28.99 inc VAT
Bolt Down Square Post Pergola Support Brackets

Base plate – screwed to concrete 71mm (2.8 “) – 121mm ( 4.8”)

£4.99£14.69 inc VAT

Heavy Duty Galvanised (“TT” Type) Post u post support facilitates the assembly of wooden elements with concrete, ensures proper dilatation of the wood from the ground.

Bolt down Post Support bracket (type TT)
Height: 100mm – 205mm  (8″)
Depth 71mm – 121mm  (4.8″)
width 92mm- 162mm  (6″ 3/4)
Holes size  7 – 10mm
Thickness: 5 mm
Bearing: 31.9 kN
Recommended fixings: Screws6-10 mm, Fixings M6 and M10
Applications: pergolas
carports , decking

SKU: PST Category:

Description

Heavy Duty Galvanised (“TT” Type) Post u post support facilitates the assembly of wooden elements with concrete, ensures proper dilatation of the wood from the ground.

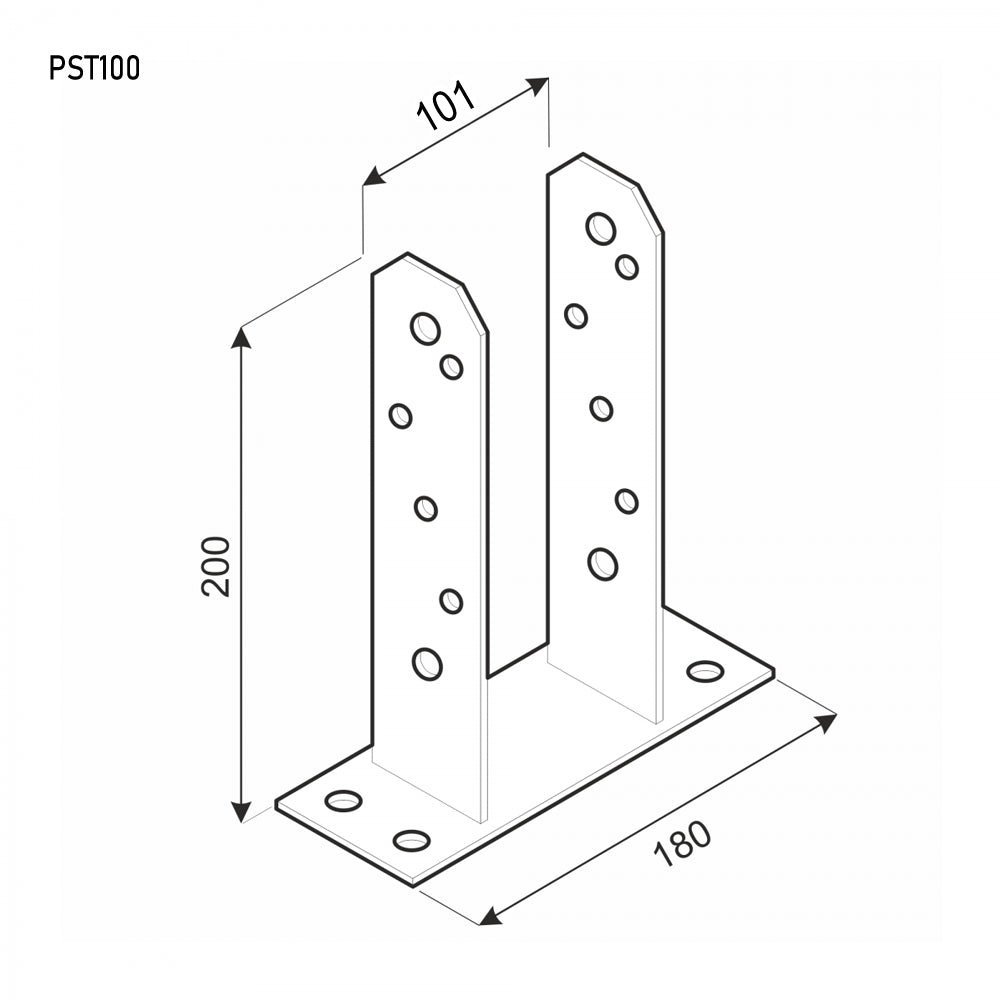

Model Width Depth Height Thickness Load Capacity Drawing
PST70 71mm 71mm 200mm 5mm 31.9kn
PST75 75mm 75mm 200mm 5mm 31.9kn
PST90 91mm 91mm 200mm 5mm 31.9kn
PST100 101mm 101mm 200mm 5mm 31.9kn
PST120 121mm 121mm 200mm 5mm 31.9kn

PST

Additional information

Weight N/A
