Description

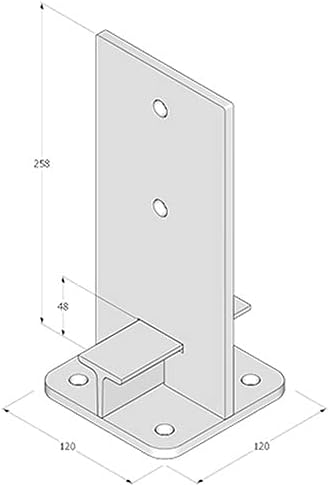

The PUW concrete anchor ensures a stable connection of wooden poles with concrete.The T-bar at the bottom of the base allows the beam to rest on it. Thanks to this, the structure is solid and ensures dilatation of the column from the ground. The base of the beam is screwed to concrete PUW is made of high-quality, durable materials
Model | Width | Depth | Height | Thickness | Load Capacity |
PUW90 | 90mm | 90mm | 258mm | 4mm | |
PUW100 | 100mm | 100mm | 258mm | 4mm | |
PUW140 | 140mm | 140mm | 258mm | 4mm |

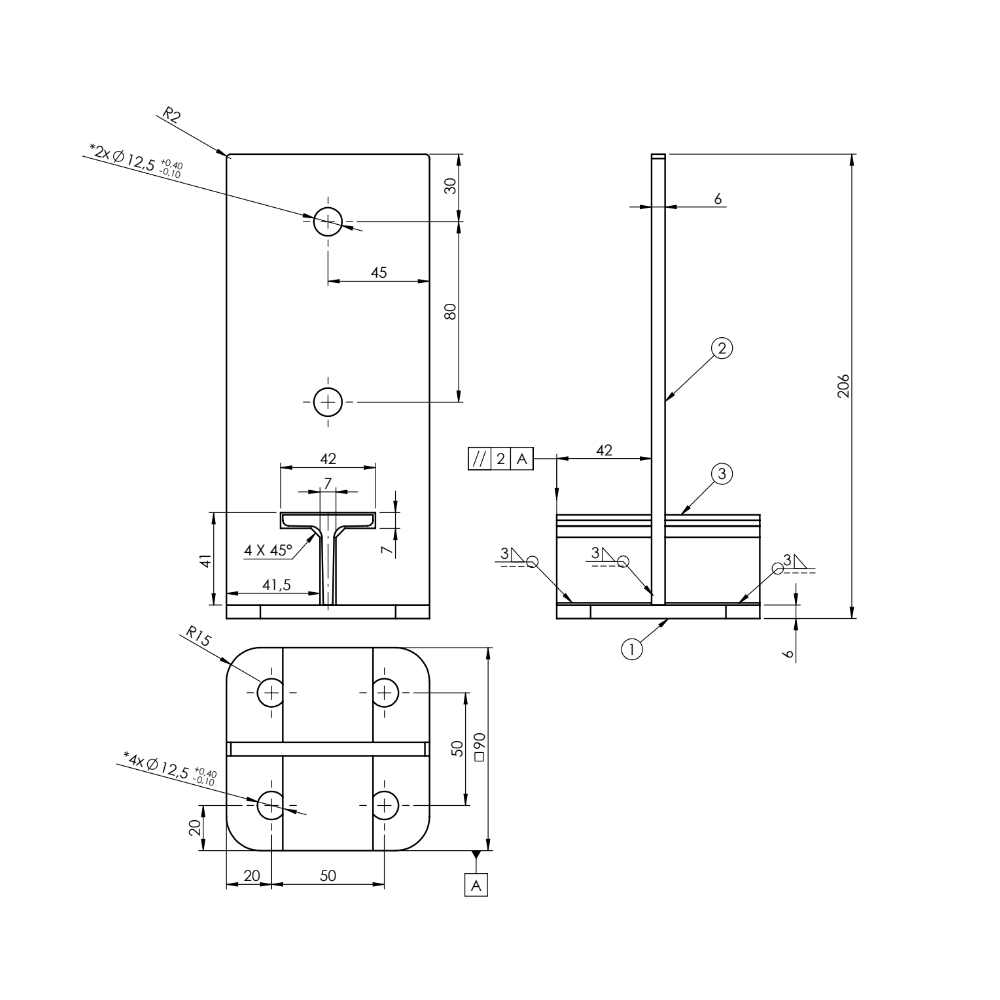

PUW90 Technical Drawing

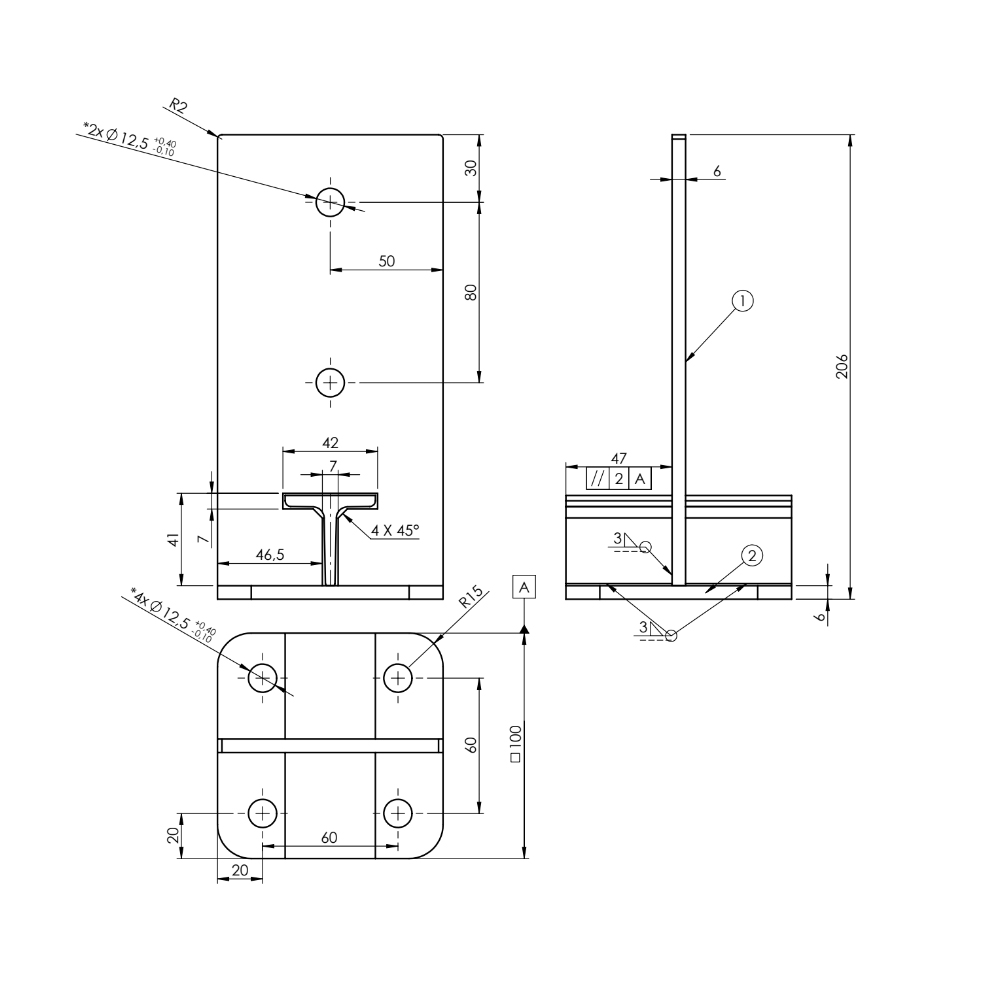

PUW100 Technical Drawing

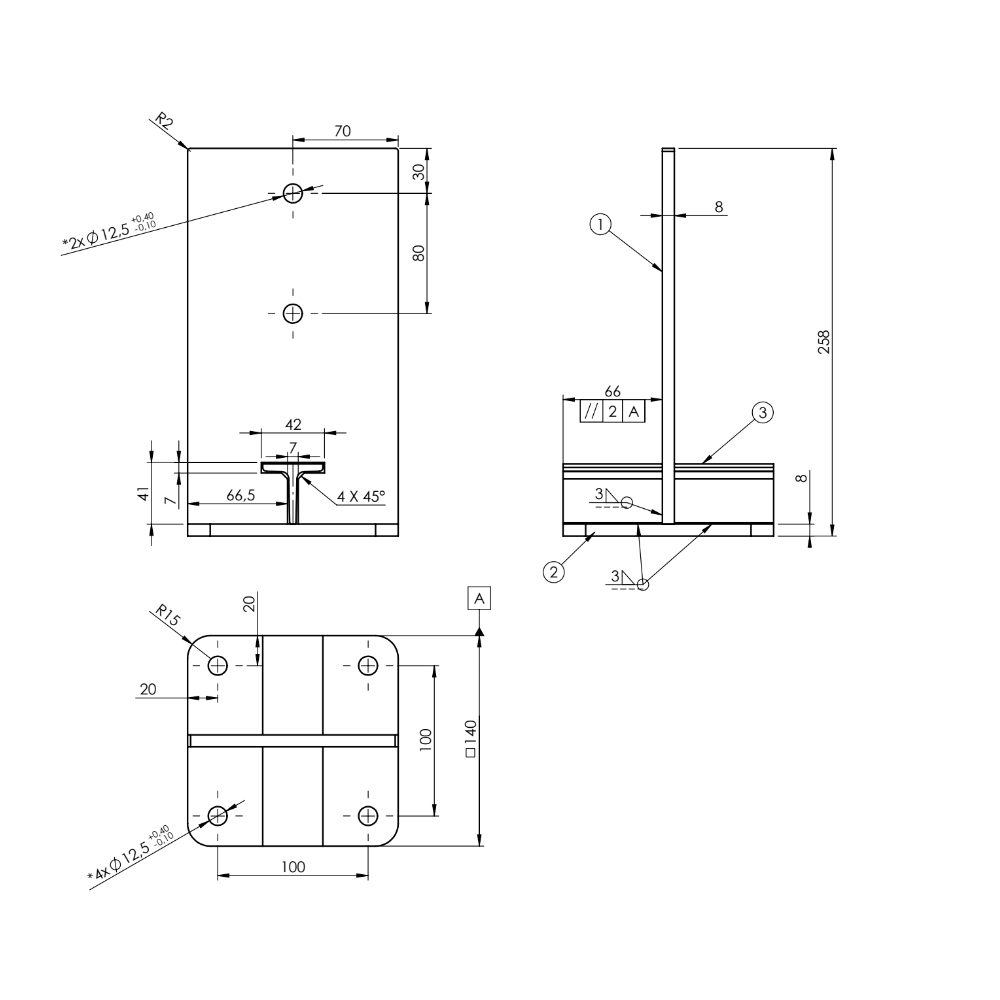

PUW140 Technical Drawing
PUW
