Open fence post support that fixes to the wall bracket in multiple sizes

£4.97 – £13.97 inc VAT

Open post support used for connecting wooden posts with concrete. Using open post supports allows to place a rectangular post in these supports and to adapt them to the post’s width. The use of a single  support allows the pole to be mounted at the wall.

  • Galvanised Steel open  Post Support
  • Height  sizes 102mm (4″) –  154mm ( 6″)
  • Width  sizes  46mm   (1.8″) – 154mm (6″)
  • Holes size 10mm
  • Thickness:   1.5  -2.5  mm
SKU: PSPDX Category:

Description

Open post foot support facilitates fixings wooden posts to concrete assures the correct separation between the wood & the gate post.

PSPDX

Model Width  internal Depth Height Thickness Load Capacity
PSPDX45 46mm 1.8″ 41mm 102mm/4″ 1.5mm
PSPDX70 71mm 2.8″ 67mm 154mm/6″ 2mm
PSPDX90 91mm 3.6″ 87mm 154mm/6″ 2mm
PSPDX100 101mm 4″ 91mm 154mm/6 2mm
PSPDX120 121mm 4.75″ 101mm 154mm/6 2mm
PSPDX140 121mm 4.75″ 101mm 154mm/6 2mm
PSPDX150 121mm 4.75″ 101mm 154mm/6 2mm

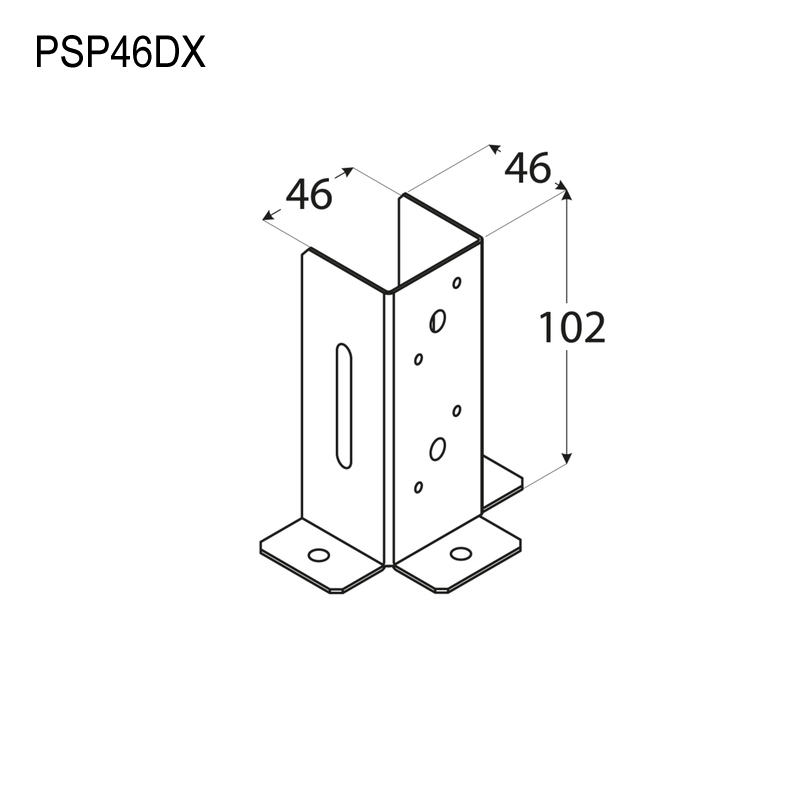

PSPDX45 Technical Drawing

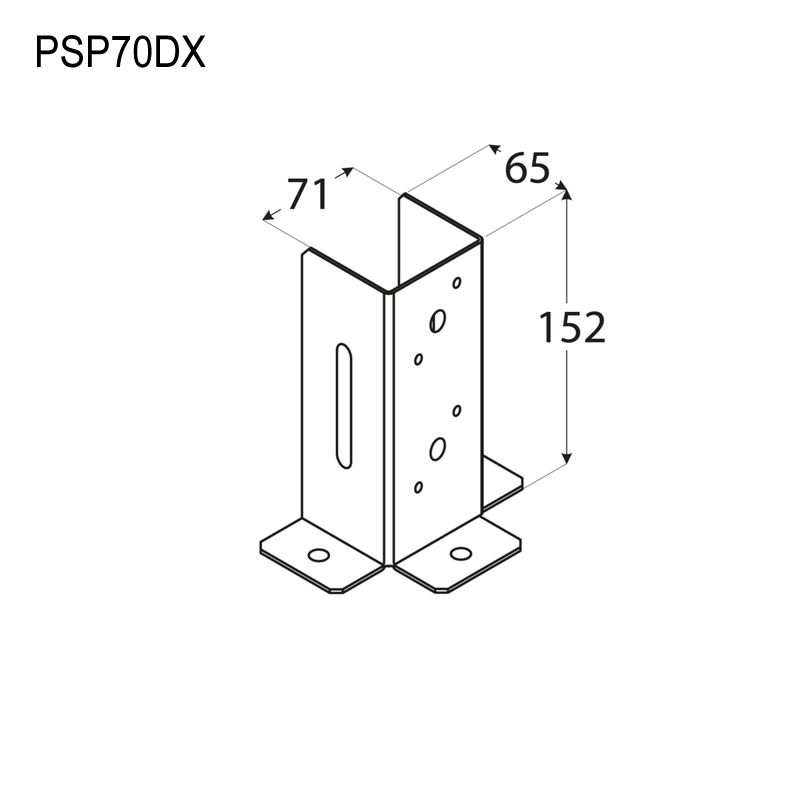

PSPDX70 Technical Drawing

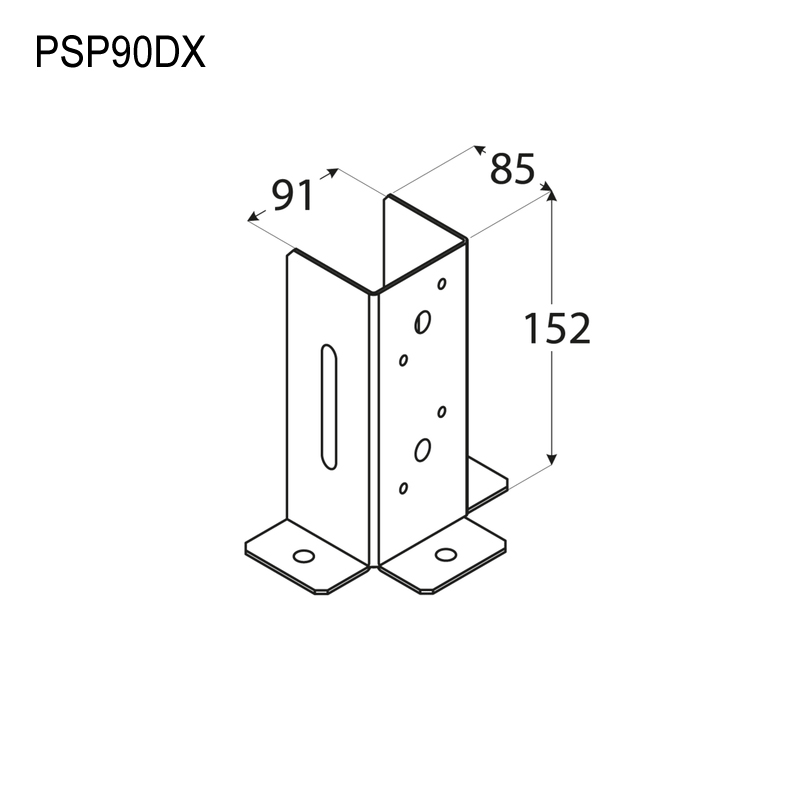

PSPDX90 Technical Drawing

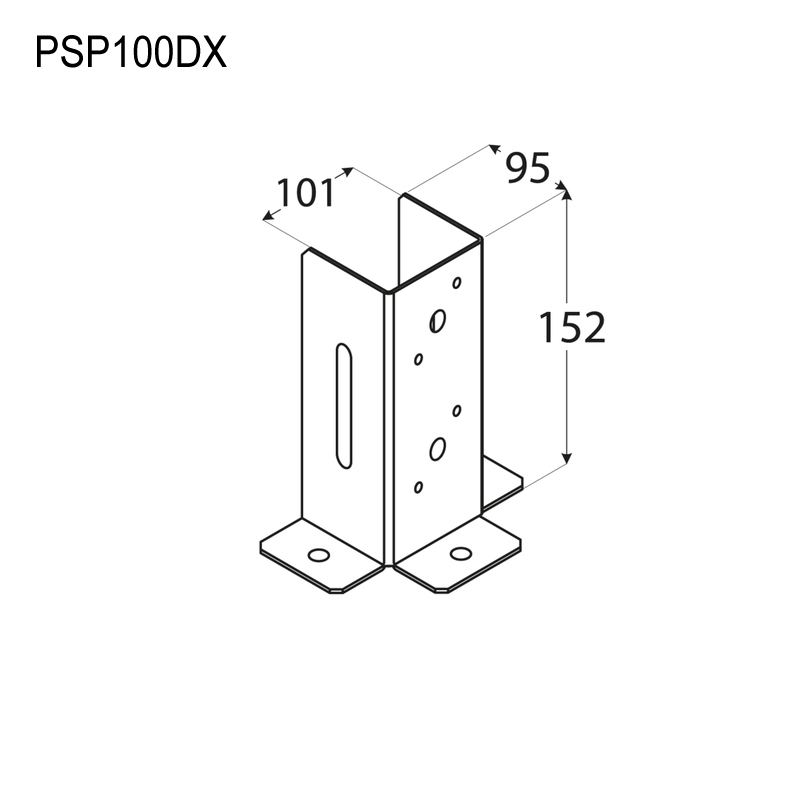

PSPDX100 Technical Drawing

PSPDX120 Technical Drawing

PSPDX140 Technical Drawing

PSPDX150 Technical Drawing



——————-

As an image

PSPDX

Additional information

Product Size

46 x 46 x 102mm, 71 x 65 x 152mm, 91 x 85 x 152mm, 101 x 95 x 152mm, 121 x 116 x 152mm, 141×107 x 154mm, 151×107 x 154mm, Set of Fixings
