Adjustable height square post support

£4.89£12.98 inc VAT

Adjustable Elevated Post Base Ideal for pergolas ,decking and awning post-construction. The major advantage of the concealed post base support is that it can be adjusted after installation

  • Adjustable Steel Post Support
  • Height: 100mm – 150 mm (6″)
  • 130mm – 5 1/4″
  • 100 mm – 4″
  • Holes size 10mm
  • Thickness: 3 mm
  • Bearing: 40.8 kN
  • thread size 20mm
  • Can be adjusted after the installation
  • Applications: pergolas, awning posts,
  • carports , decking
SKU: PR Category:

Description

Heavy Duty Galvanised Post Pergola Fence Foot Bolt Down Anchors 100-150mm Height Adjustable Elevated Post Base Ideal for pergolas ,decking and awning post-construction. The major advantage of the concealed post base support is that it can be adjusted after installation and does not require machining.post bases are made of galvanised steel according to CE Certificate requirements. Fix to the foundation with M10 anchors. fix the post using M10 Can be adjusted with a 30mm wrench after both plates are attached coach screws. Not recommended when the top of post/column is not restrained (e.g. fence post)



Model Width Depth Height Thickness Load Capacity
PR100 100mm 100mm 100mm-150mm 3mm 40.8kn
PR130 130mm 130mm 100mm-150mm 3mm 40.8kn

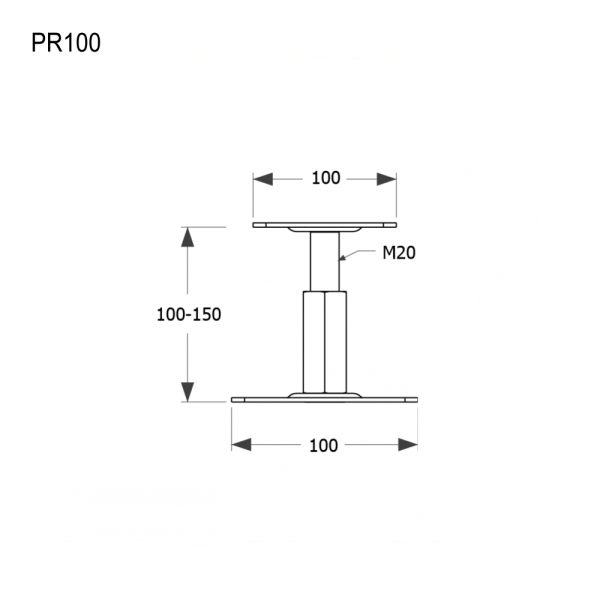

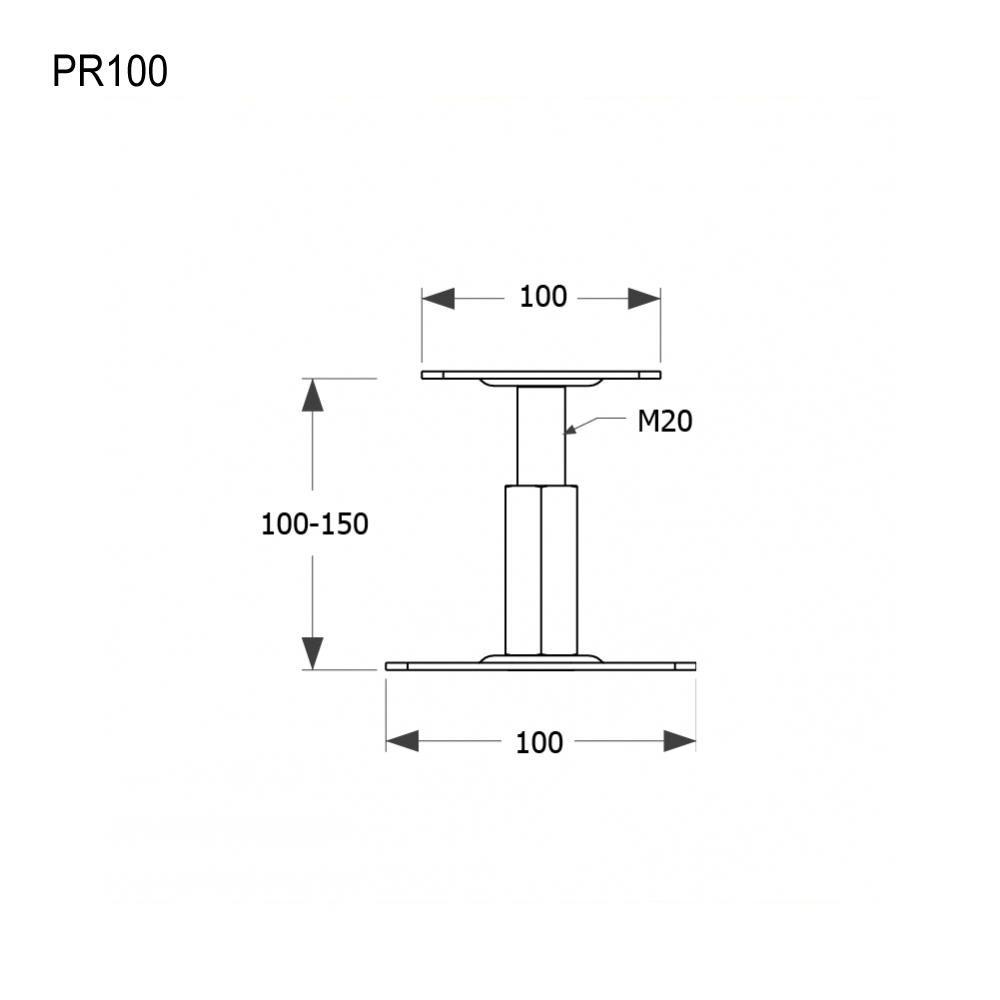

PR100 Technical Drawing

Image Coming Soon



PR130 Technical Drawing

Image Coming Soon



PR

Additional information

Product Size

100 x 100 x 100-150mm, 130 x 130 x 100-150mm, Set of Fixings
