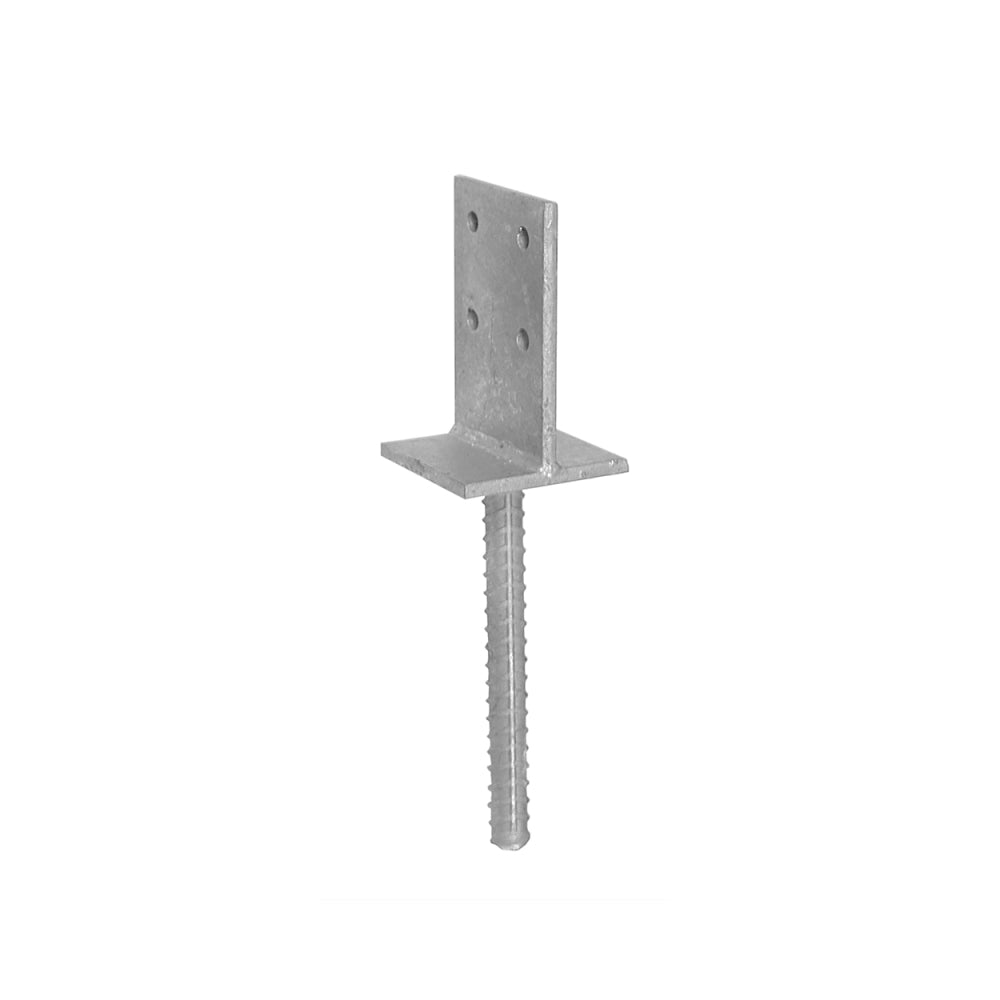

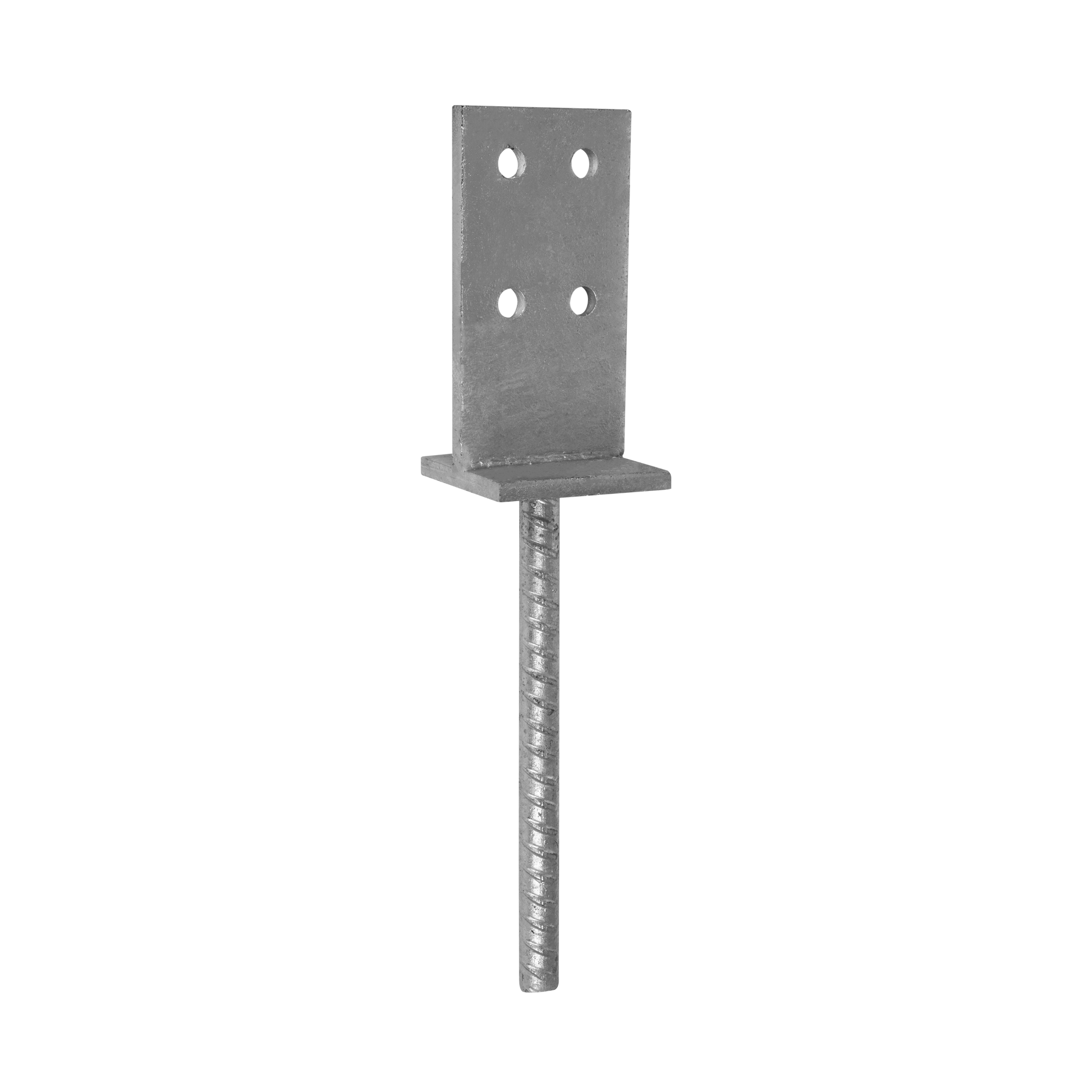

Internal Metal Post Foot Ground Anchor

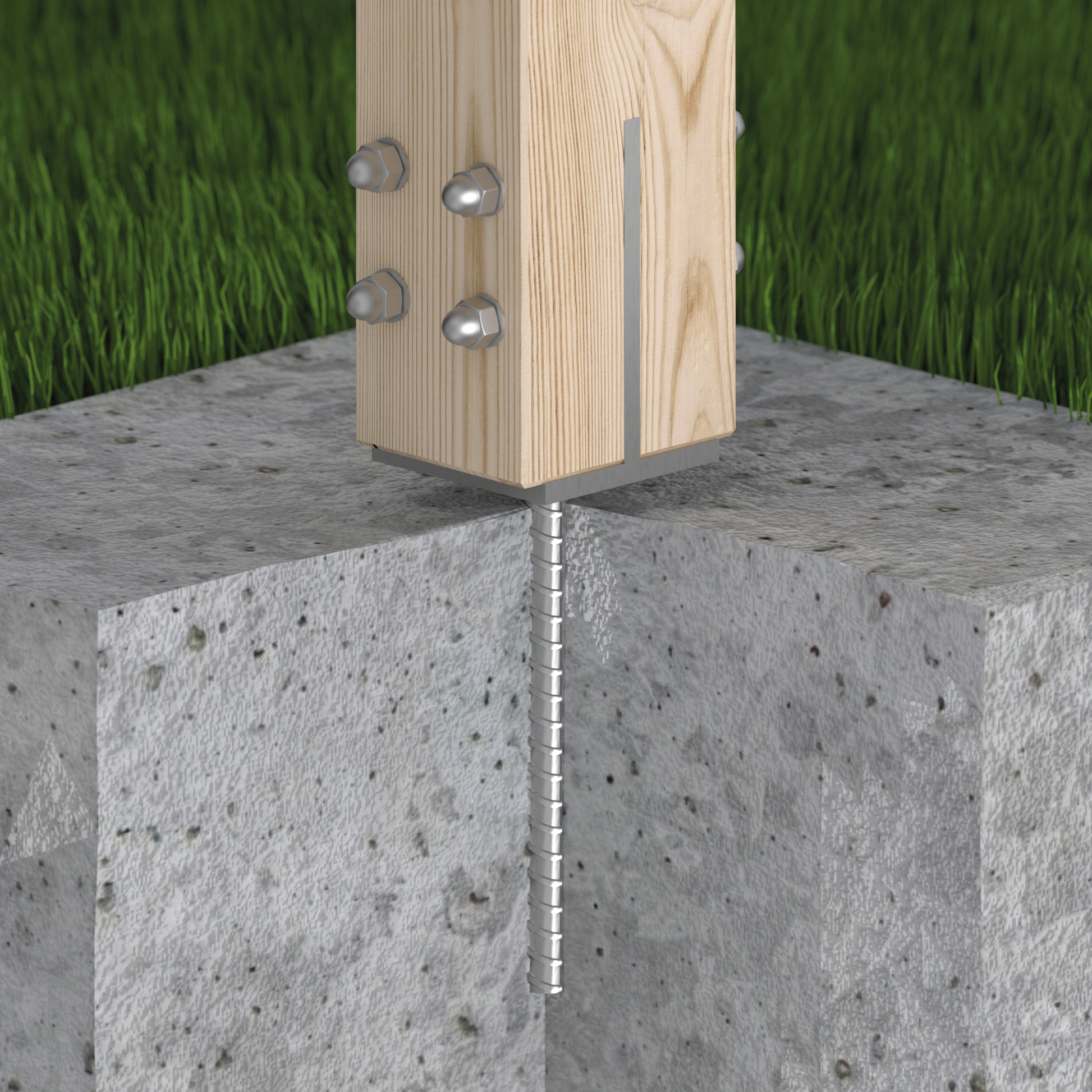

Heavy Duty Galvanised Concrete In Elevated Concealed Internal Post Support for encasing in concrete gives a timber post necessary protection against the attack of termites and moisture. It provides a quick and affordable method of setting the timber post in concrete.

• in-concrete post supports
• concrete in, post attachment
• Height: 338mm (13.2″)
• Pin height: 208 mm (8″)
• width 71mm – 91mm
• Holes size 10mm
• Thickness: 8 mm
• Bearing: 40.8 kN

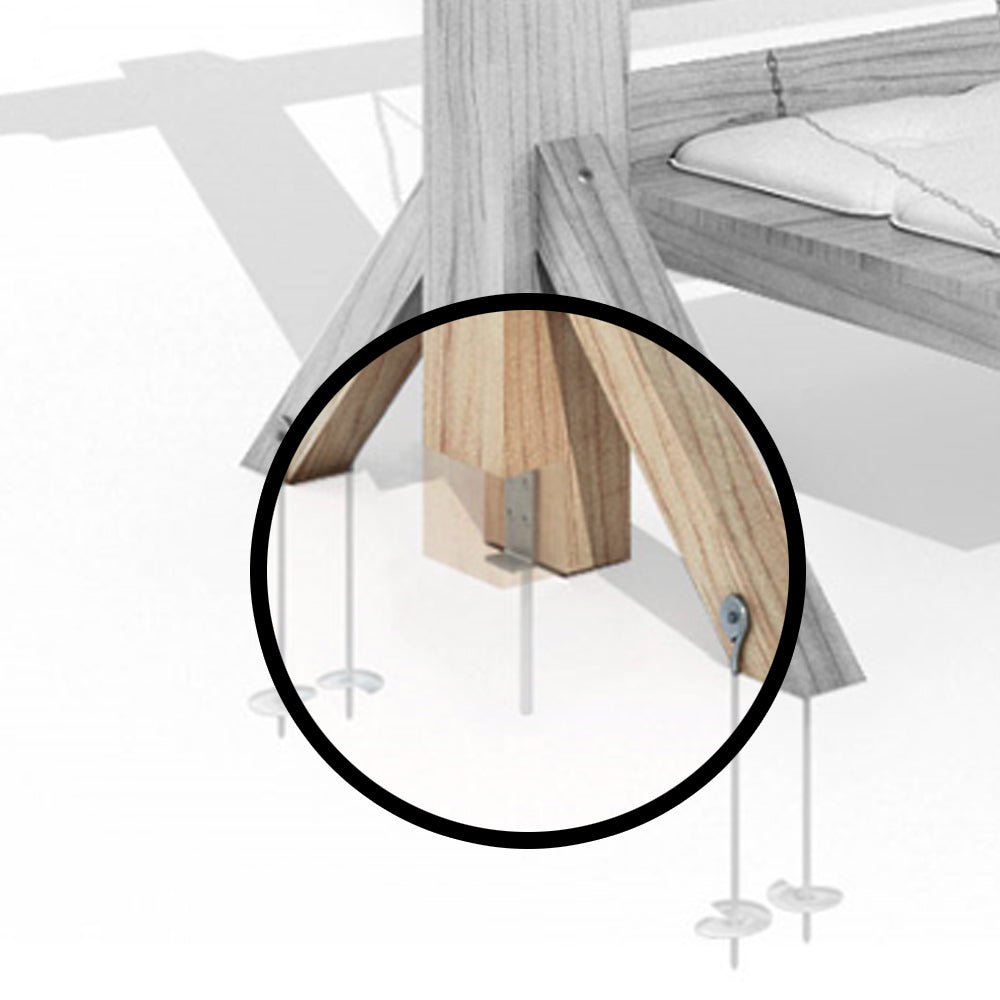

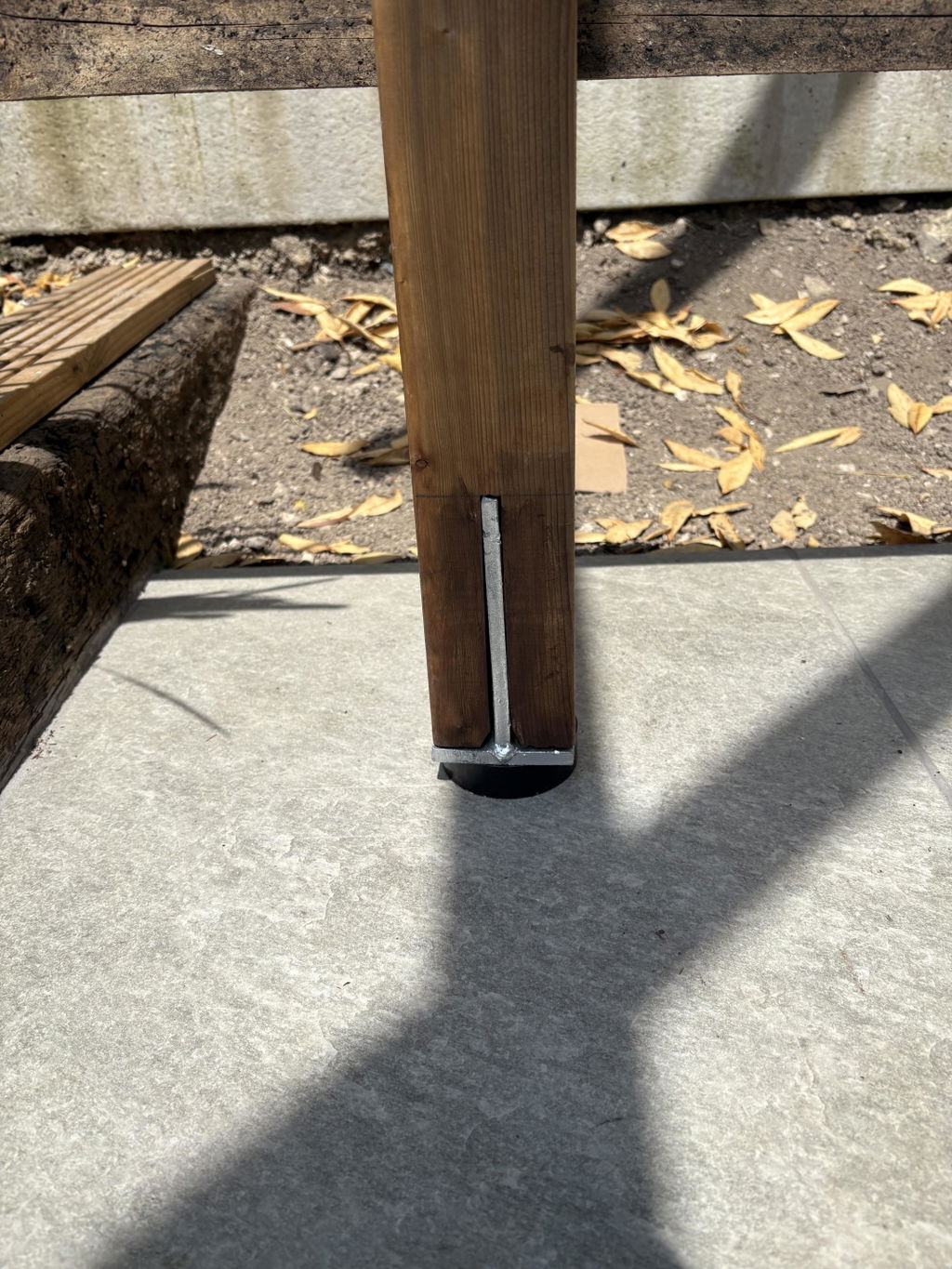

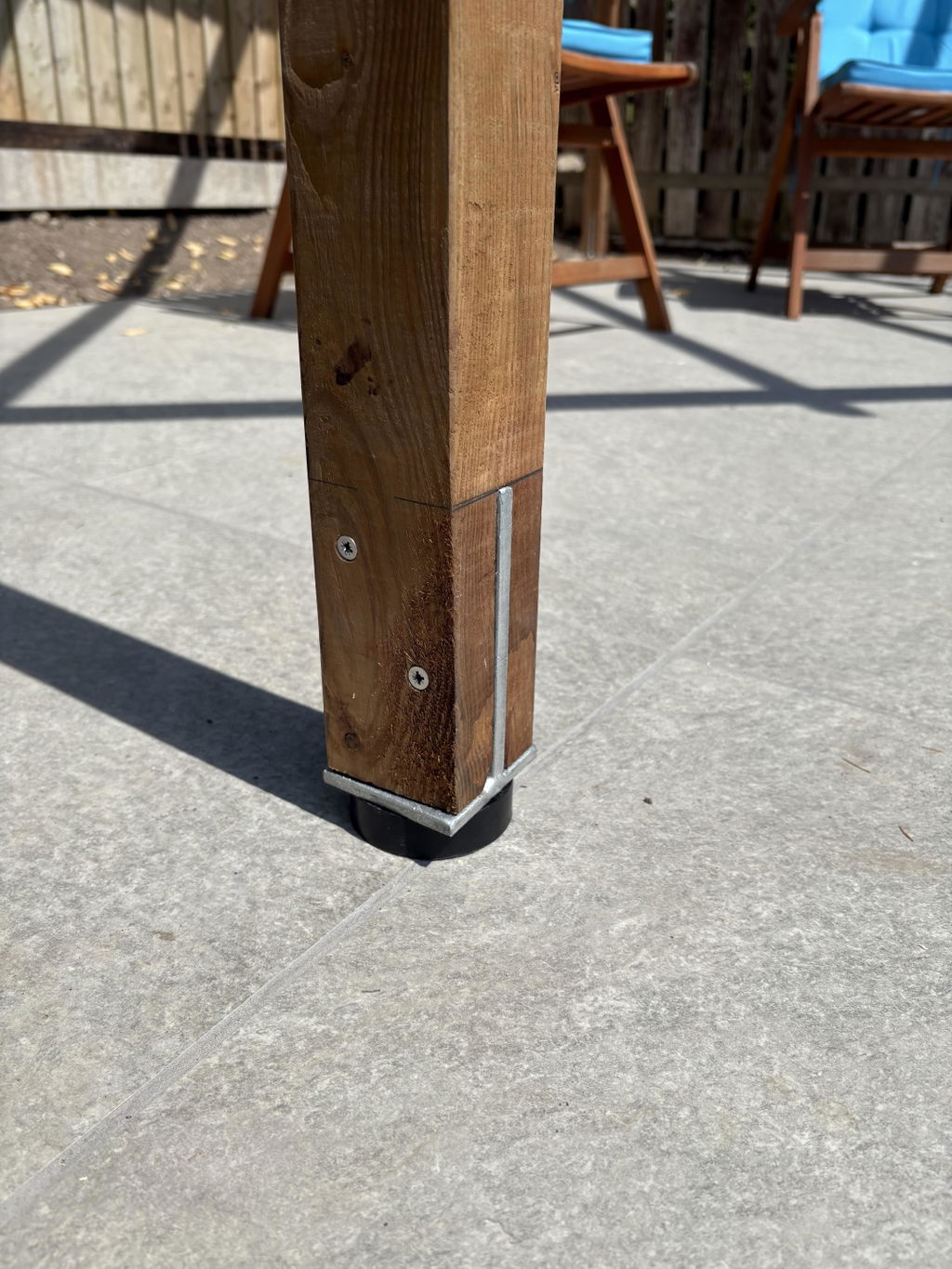

• Applications: pergolas
• carports , decking
• mounting of wooden elements with concrete

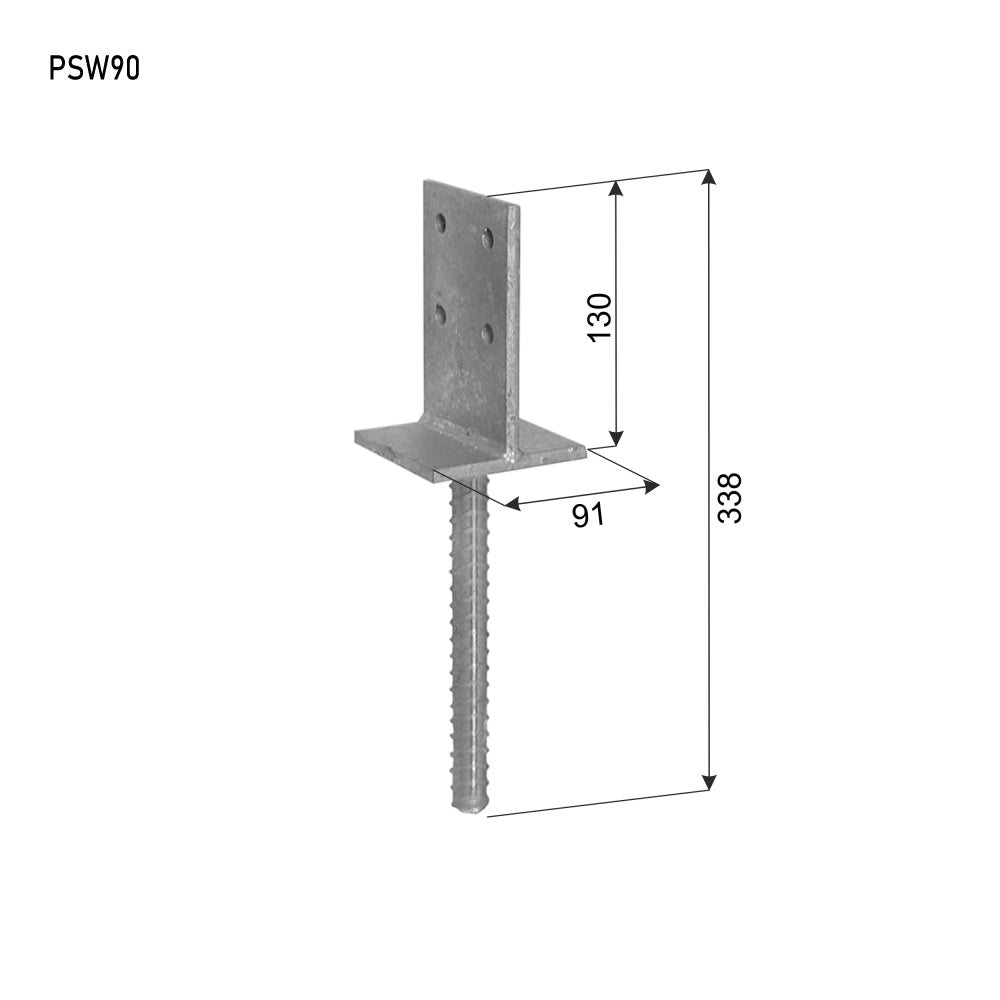

Model	Width	Depth	Height	Thickness	Load Capacity	Drawing
PSW70	71mm	130mm	338mm 13.2″	8mm	40.8kn
PSW90	91mm	130mm	338mm 13.2″	8mm	40.8kn
