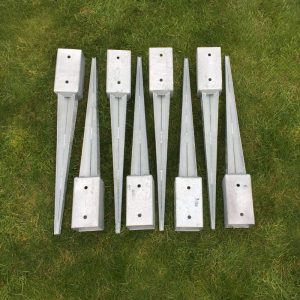

Internal Metal Post Foot Ground Anchor – 70 mm & 90 mm

Built for Strength, Designed for Durability

The Internal Metal Post Foot Ground Anchor provides a concealed, heavy-duty solution for securing timber posts into concrete. It protects posts from moisture, rot, and insect damage while maintaining a clean, professional look. Available in 70 mm and 90 mm sizes to suit a variety of timber applications.

🔧 Key Features

• Two sizes available:
  • 70 mm – fits timber posts up to ~71 mm wide
  • 90 mm – fits timber posts up to ~91 mm wide
• Height: 338 mm (13.2″)
• Pin height: 208 mm (8″)
• Wall thickness: 8 mm for maximum strength
• Load capacity: 40.8 kN – engineered for heavy-duty performance
• Pre-drilled 10 mm holes for secure bolt or screw fixing
• Hot-dip galvanised steel for long-lasting corrosion resistance
• Hidden design: delivers a sleek, flush post base with no visible plates

🏗️ Ideal For

• Pergolas and gazebos
• Decking and garden rooms
• Carports and garages
• Timber fencing and gates
• Any project requiring a durable, concealed post anchor

🧱 Installation Guide

1. Pour a concrete footing to the required depth.
2. Insert and align the anchor vertically.
3. Allow concrete to cure securely around the anchor.
4. Slide your timber post over the central pin.
5. Fix through the pre-drilled holes using corrosion-resistant bolts or screws.

Tip: Use the 70 mm size for standard fence posts and the 90 mm size for larger, load-bearing timber posts.

✅ Why Choose This Anchor

• Hidden, professional finish
• Heavy-duty galvanised protection
• Reliable structural strength
• Simple, fast installation
• Two size options for the perfect fit

🛠️ Specifications Summary

Protect your posts. Strengthen your structure.
The Internal Metal Post Foot Ground Anchor offers reliability, longevity, and a clean look — built for lasting performance in any outdoor timber project.
